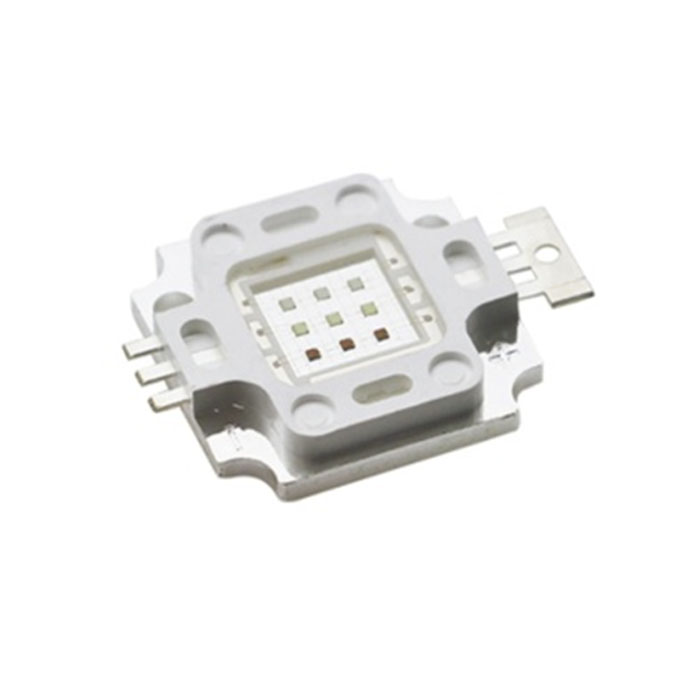

10W RGB LED, Red Green Blue Color 6 Pin RGB LED For LED Flood Light
PACKAGE DIMENSION: 1.All dimension units are millimeters. 2.All dimension tolerance is ±0.15mm unless otherwise noted. FEATURES: • Gold wire and copper base. • Wide viewing angle, high luminous intensity. • Green product, Complied with ROHS directive PARAMETERS; APPLICATION ■…
Description
PACKAGE DIMENSION:
1.All dimension units are millimeters.
2.All dimension tolerance is ±0.15mm unless otherwise noted.
FEATURES:
• Gold wire and copper base.
• Wide viewing angle, high luminous intensity.
• Green product, Complied with ROHS directive
PARAMETERS;
| Type | Color | NM | View Angle | IV | IF | VF |
| 10W RGB LED | Red | 620~630 | 120 | 160LM | 350mA | 6.0~7.0V |
| Green | 520~525 | 120 | 250LM | 350mA | 10.0~11.0V | |
| Blue | 460~465 | 120 | 90LM | 350mA | 10.0~11.0V |
APPLICATION
■ Portable（flashlight, bicycle）.
■ Up lighters /Down lighters.
■ Decorative/Entertainment(stage light).
■ Automotive Ext(stop-tail-turn, width Lamp).
■ General use.
If the 10w rgb led, red green blue color 6 pin rgb led for led flood light for sale caters to your requirement, welcome to buy the high quality and durable products with our professional manufacturers and suppliers. Competitive in eco-friendly property and competitive price, it won’t let you down.
