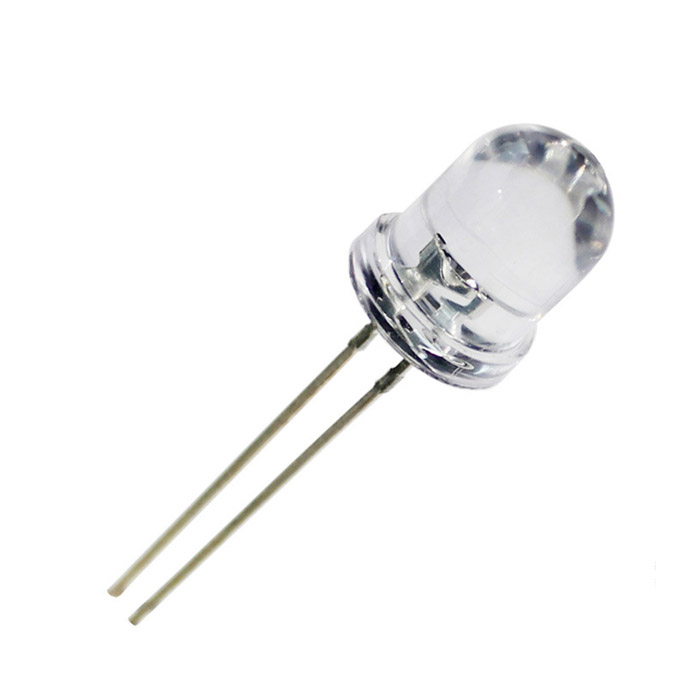

8mm LED, Round And Straw Hat, 0.1W/0.2W/0.5W
PACKAGE DIMENSION: 1.All dimension units are millimeters. 2.All dimension tolerance is ±0.18mm unless otherwise noted. FEATURES: • Emitting color: red, white, yellow, orange, yellow green, blue, pure green and so on. • Lens type: water clear, white diffused, color clean, color diffuse. •…
Description
PACKAGE DIMENSION:
1.All dimension units are millimeters.
2.All dimension tolerance is ±0.18mm unless otherwise noted.
FEATURES:
• Emitting color: red, white, yellow, orange, yellow green, blue, pure green and so on.
• Lens type: water clear, white diffused, color clean, color diffuse.
• Different angle: 20°，30°, 40°.
• Low power consumption, high intensity, uniform illumination.
• Green product, Complied with ROHS directive
PARAMETERS;
| ITEM | COLOR | WAVELENGTH | VF | IF | IV |
| 8mm Round LED | RED | 620~630NM | 1.8~2.3V | 60mA | 2000~3000mcd |
| 8mm Round LED | GREEN | 520~525NM | 3.0~3.4V | 60mA | 4000~60000mcd |
| 8mm Round LED | BLUE | 460~465NM | 3.0~3.4V | 60mA | 2000~3000mcd |
| 8mm Round LED | YELLOW | 590~595NM | 1.9~2.4V | 60mA | 2000~3000mcd |
| 8mm Round LED | ORANGE | 600~605NM | 1.8~2.4V | 60mA | 2000~3000mcd |
| 8mm Round LED | WARM WHITE | 2700~3000K | 3.0~3.4V | 60mA | 13~17LM |
| 8mm Round LED | NETURAL WHITE | 4000~4500K | 3.0~3.4V | 60mA | 15~20LM |
| 8mm Round LED | PURE WHITE | 6000~6500K | 3.0~3.4V | 60mA | 15-20L |
APPLICATION
■ Indicator light, message boards.
■ LED indoor lighting and outdoor lighting.
■ Decorative lighting.
■ Auto meter LED decorative lighting.
■ General use.
