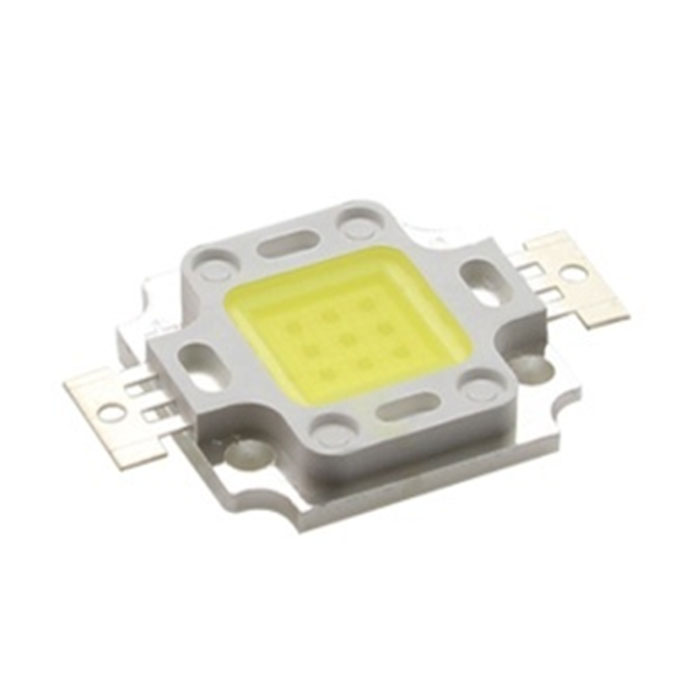

10W High Power LED, White Color, High Brightness.
PACKAGE DIMENSION: 1.All dimension units are millimeters. 2.All dimension tolerance is ±0.15mm unless otherwise noted. FEATURES: • LM-80 certificated for white. Gold wire and copper base. • Wide viewing angle, high luminous intensity. • Green product, Complied with ROHS directive PARAMETERS;…
Description
PACKAGE DIMENSION:
1.All dimension units are millimeters.
2.All dimension tolerance is ±0.15mm unless otherwise noted.
FEATURES:
• LM-80 certificated for white. Gold wire and copper base.
• Wide viewing angle, high luminous intensity.
• Green product, Complied with ROHS directive
PARAMETERS;
| Type | Color | CT | View Angle | IV | IF | VF |
| 10W LED | WARM WHITE | 2700~3000K | 120 | 120LM/W | 1050mA | 9.0~10.5V |
| 10W LED | WARM WHITE | 4000~4500K | 120 | 130LM/W | 1050mA | 9.0~10.5V |
| 10W LED | PURE WHITE | 600~7000K | 120 | 130LM/W | 1050mA | 9.0~10.5V |
| 10W LED | PURE WHITE | 7000~8000K | 120 | 120LM/W | 1050mA | 9.0~10.5V |
APPLICATION
■ Automotive lights.
■ Indoor and outdoor lighting.
■ Backlight for LCD and traffic light.
■ Tubular light application.
■ General use.
If the 10w high power led, white color, high brightness. for sale caters to your requirement, welcome to buy the high quality and durable products with our professional manufacturers and suppliers. Competitive in eco-friendly property and competitive price, it won’t let you down.
