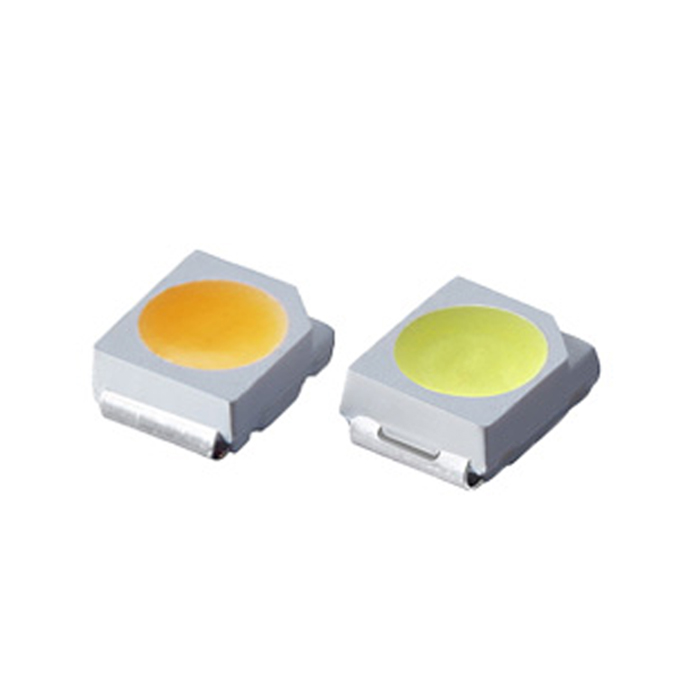

3528 SMD LED, 2 And 4 Pins, Energy Star LM-80
PACKAGE DIMENSION: 1.All dimension units are millimeters. 2.All dimension tolerance is ±0.15mm unless otherwise noted. FEATURES: • Package ( L/W/H ) : 3.5 × 2.8 × 1.9 mm. • The series has a variety of colors. For example red, yellow, yellow green, blue and so on. • Wide viewing angle, high…
Description
PACKAGE DIMENSION:
1.All dimension units are millimeters.
2.All dimension tolerance is ±0.15mm unless otherwise noted.
FEATURES:
• Package ( L/W/H ) : 3.5 × 2.8 × 1.9 mm.
• The series has a variety of colors. For example red, yellow, yellow green, blue and so on.
• Wide viewing angle, high luminous intensity. Suitable for all SMT assembly and solder process.
• Green product, Complied with ROHS directive
• OEM business is workable.
PARAMETERS;
| Type | Color | CT | View Angle | IV | IF | VF |
| 3528 SMD LED | BLUE | 460-475nm | 120 | 700MCD | 20mA | 3.0~3.6V |
| 3528 SMD LED | GREEN | 515-525nm | 120 | 2000MCD | 20mA | 3.0~3.6V |
| 3528 SMD LED | YELLOW | 585-595nm | 120 | 800MCD | 20mA | 1.9~2.4V |
| 3528 SMD LED | RED | 620-630nm | 120 | 800MCD | 20mA | 1.9~2.4V |
| 3528 SMD LED | WARM WHITE | 2700~3000K | 120 | 7LM | 20mA | 3.0~3.6V |
| 3528 SMD LED | WARM WHITE | 4000~4500K | 120 | 7LM | 20mA | 3.0~3.6V |
| 3528 SMD LED | PURE WHITE | 600~7000K | 120 | 7LM | 20mA | 3.0~3.6V |
| 3528 SMD LED | PURE WHITE | 7000~8000K | 120 | 7LM | 20mA | 3.0~3.6V |
APPLICATION
■ Optical indicator
■ Indoor display
■ Automotive lighting
■ Backlight for LCD, switch and Symbol, display
■ Tubular light application
■ General use
If the 3528 smd led, 2 and 4 pins, energy star lm-80 for sale caters to your requirement, welcome to buy the high quality and durable products with our professional manufacturers and suppliers. Competitive in eco-friendly property and competitive price, it won’t let you down.
